RT4100 Series FIA Approved Fibreglass Racing Seat

  • £789.99 Ex VAT

Available Options


Back Mount Instruction 119 and 4100 series REV02-2022.pdf Download

The RT4100 is a standard-sized fibreglass race seat. We have focused on achieving a lightweight seat shell with optimised geometry, straddling that line between designing the seat to be wide enough in the shoulders to suit the athletic build, but narrow enough to fit in most cockpits. Our back-mounted technology has trickled down from the 119 and 129 Series, giving you the option of fixing the seat to the roll cage at shoulder level. Large harness guides and a removable moulded base cushion allow a range of drivers of varying heights to fit. Breathable Spacer fabric, parallel sides and pronounced thigh support round off the features of this accomplished motorsport seat.

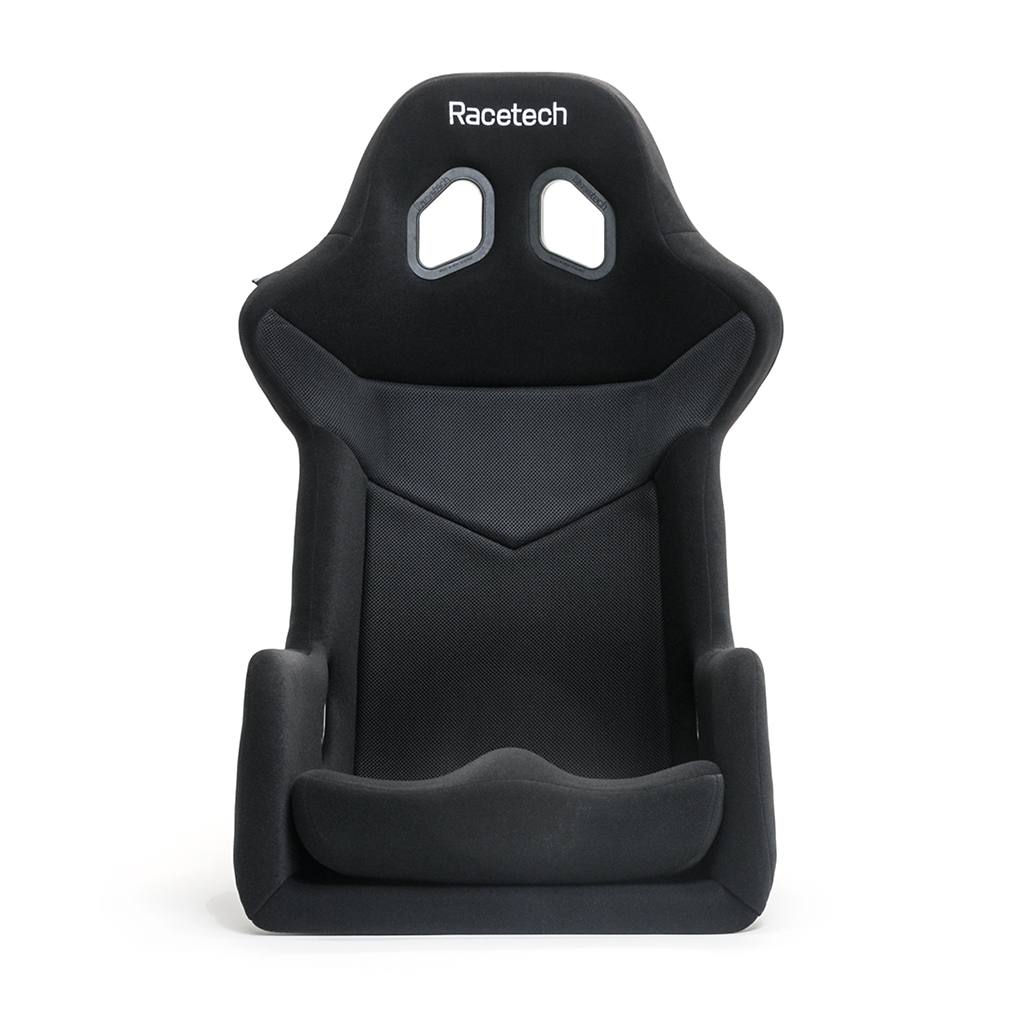

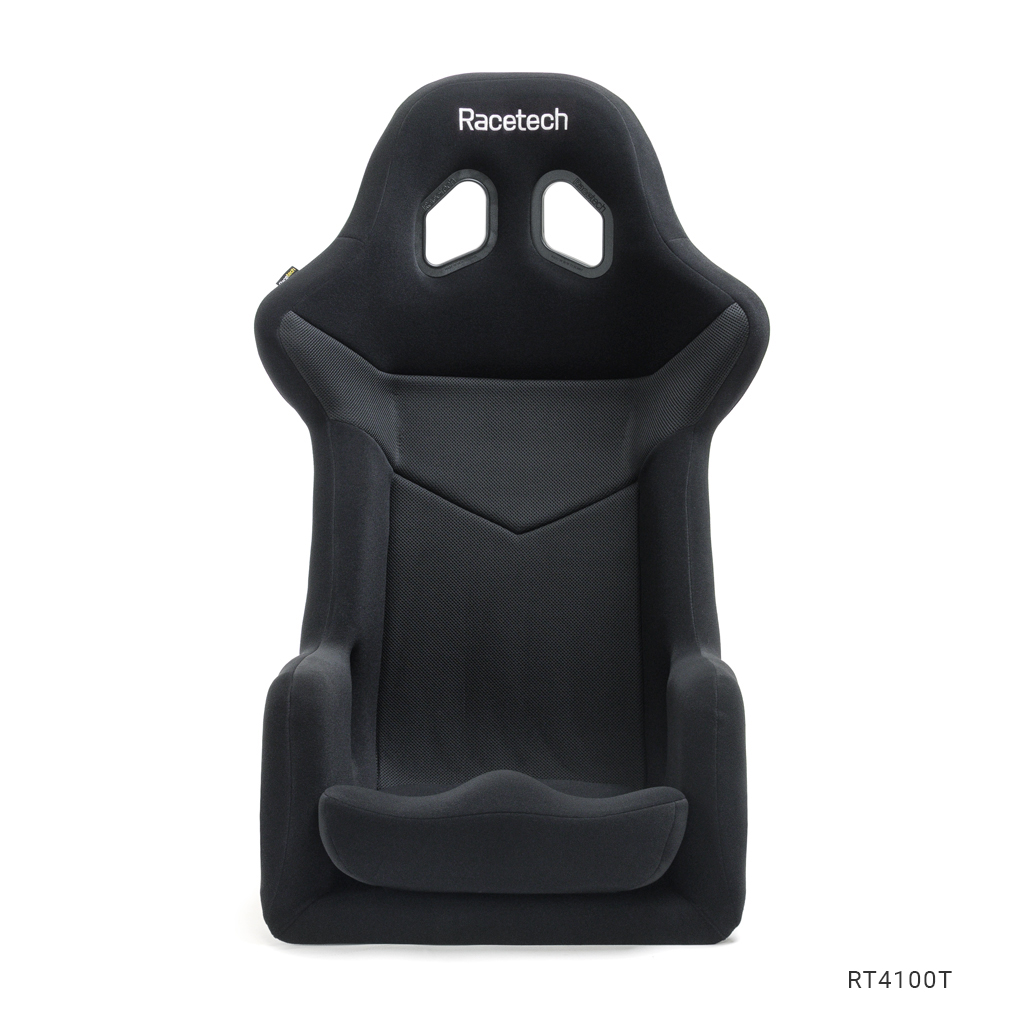

For the taller driver, the RT4100T uses the WT shell, with additional high-density foam from the sides up to the shoulders. For the larger driver, the RT4100WT is 60mm taller and 40mm wider and for those wanting a seat with head restraints, our RT4100HR and RT4100WTHR complete the 4100 Series.

Dimensions and Weights:

[[SEAT-TABLE]]

Images may differ from the actual product; embroidery on the product received may differ slightly from that shown. Contact us if you have any questions.

Application
Common Applications From clubsport to national-level circuit and rally
Stock Colour / Material
Gel-coat Gloss black
Seat Cover Black fire-retardant nylon fabric with Spacer mesh through the torso
Wear Patches N/A
Technical
FIA Homologation 8855-1999
Shell Construction Fibreglass Composite
Shell Weight From 5.7kg
Side Mount Hole Centres 295mm
Back Mount Hole Centres 250mm
Bolt Torque (Zinc) 30Nm / 22 ft lb
Sizes Standard
T - Tall
WT - Wide & Tall
Design
Head Restraint N/A
HANS Compatible Yes
Harness Compatibility Up to 6-point harness
Large Harness Guides Yes
Air Ducting N/A
Back-mount Compatible Yes
